Google Doc: https://docs.google.com/document/d/1zgCnuDMIS--ZvY1RplvGO6leBumWk2zWJU2Jc8vIMr4/edit?usp=sharing

Note to self: LNA and PA of the ground station will be on-site to avoid excess cable loss. Last I checked there aren’t any environmental ratings (ie. waterproof, hungry squirrels, aggressive pigeons, etc) so we’ll likely have to make a protective box for it!

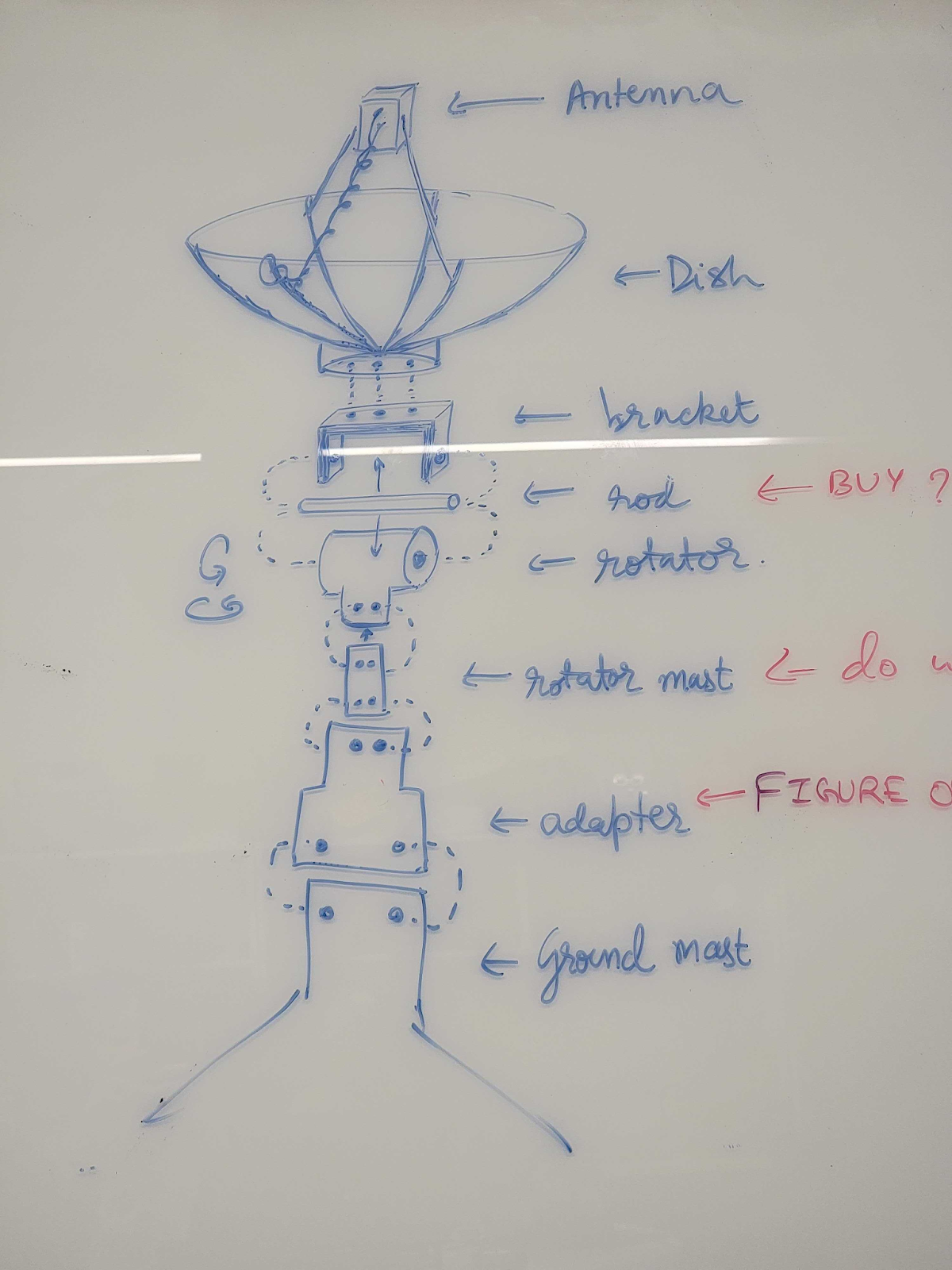

Antenna Mechanical Compendium

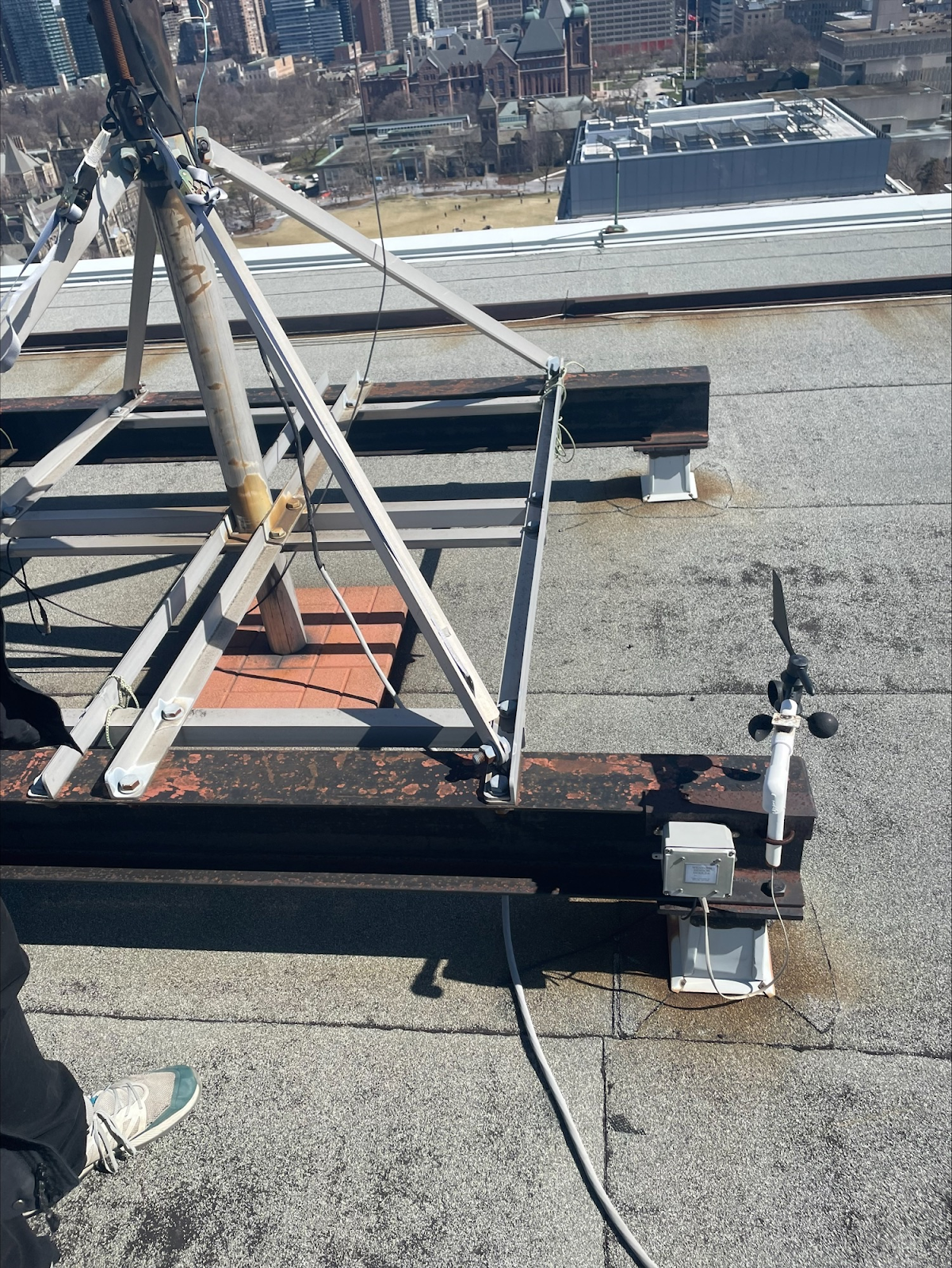

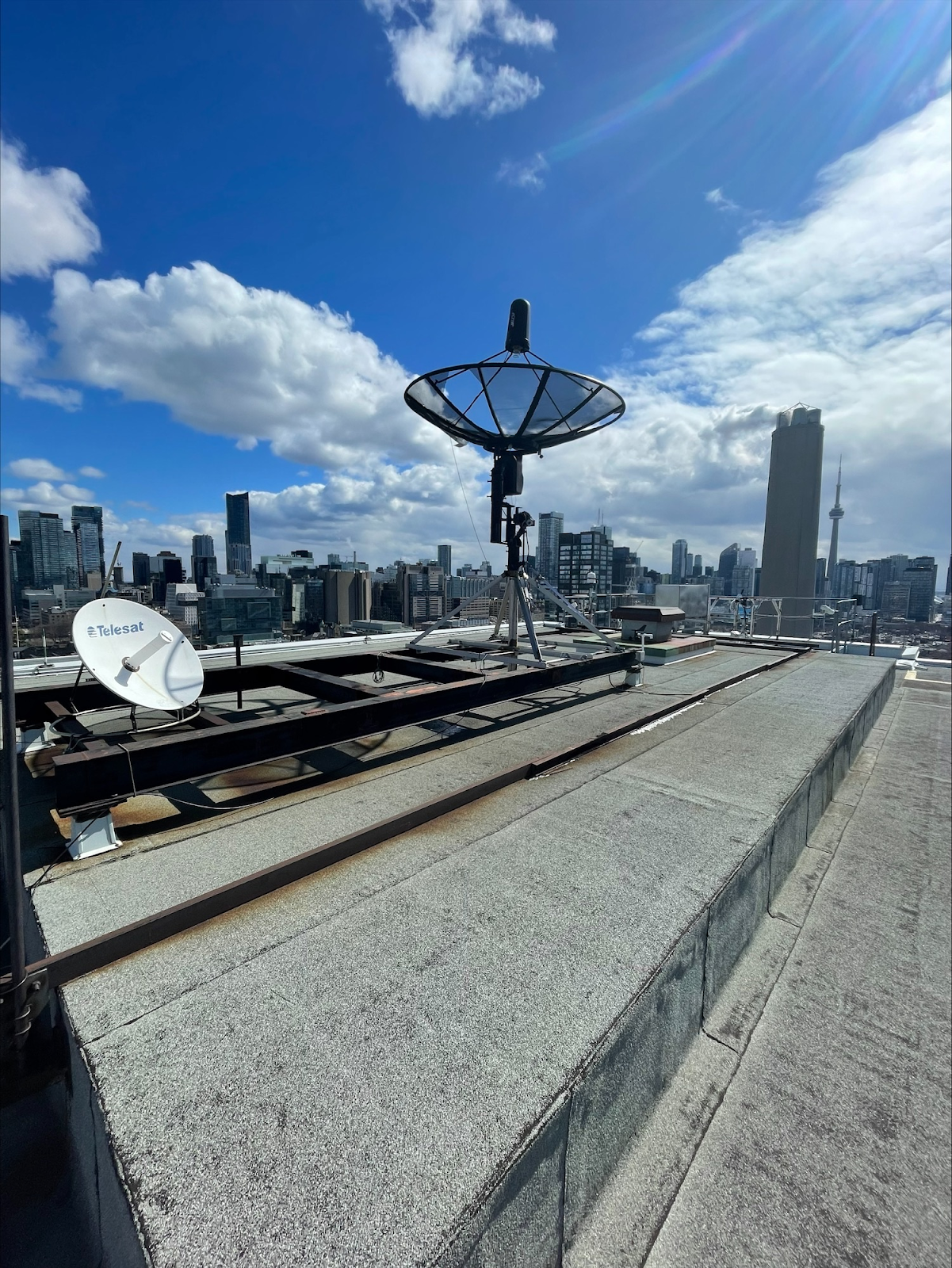

The ✨vision ✨ on the left and the current antenna on Burton Tower on the right.

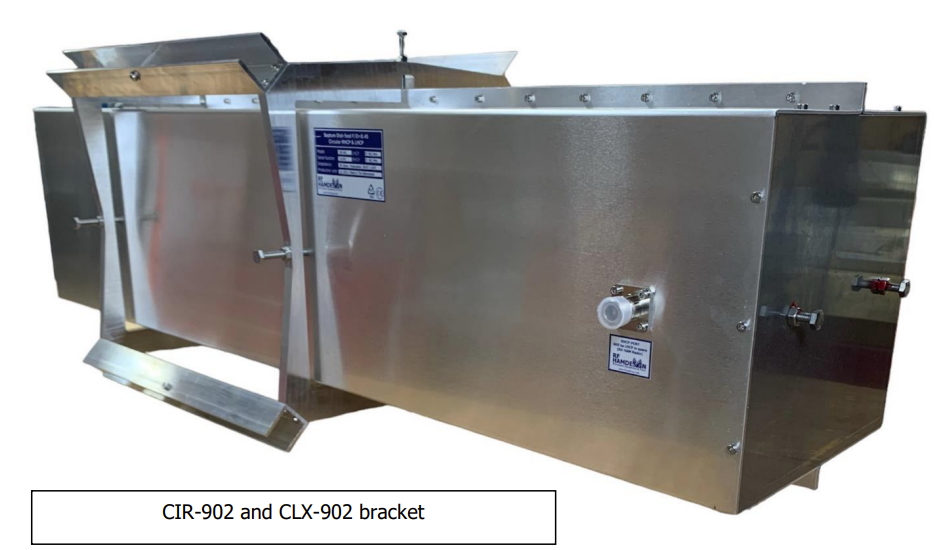

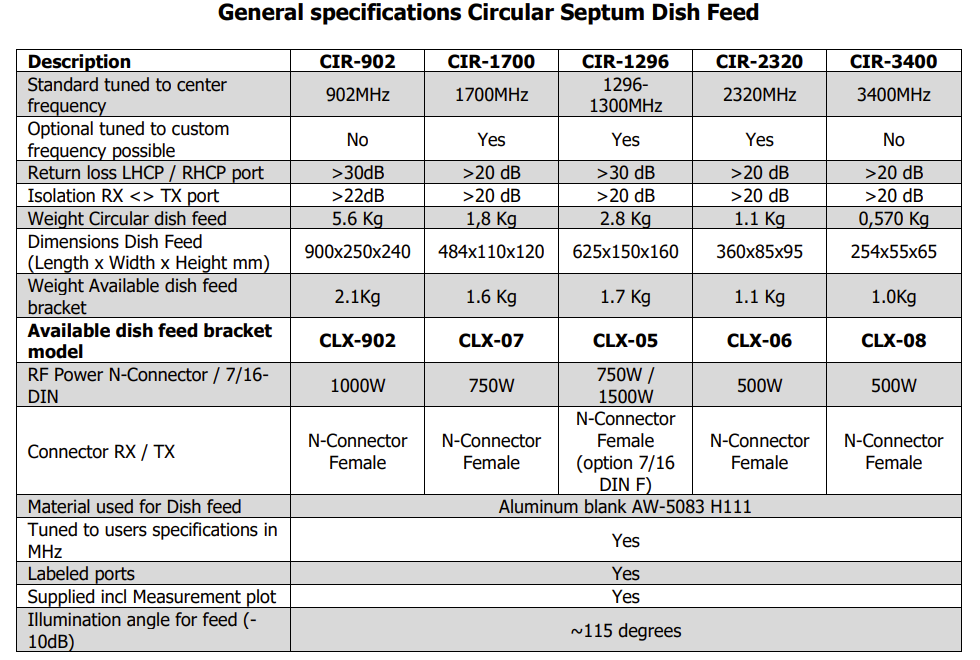

Antenna (CIR-2320 Dual mode Feed)

https://www.rfhamdesign.com/downloads/septum-dish-feed.pdf

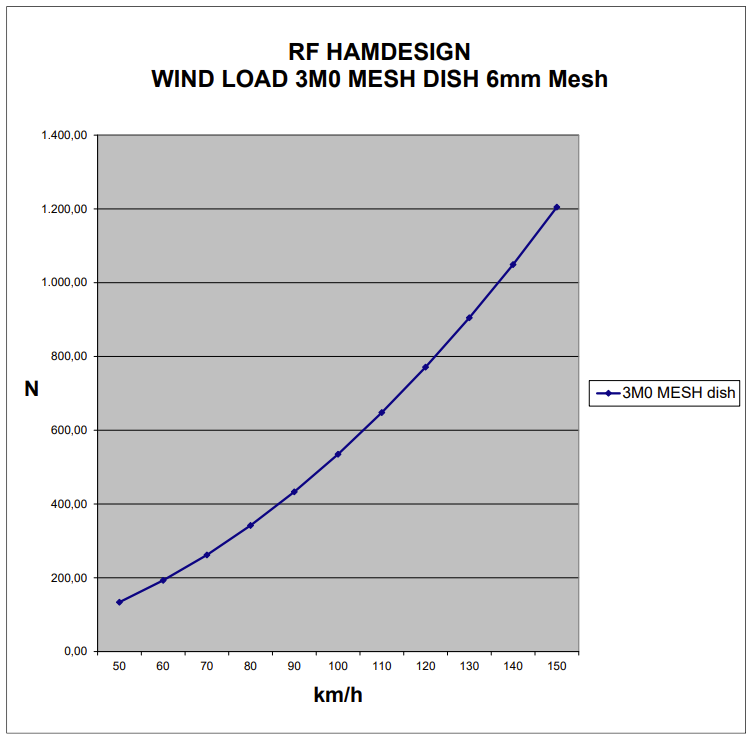

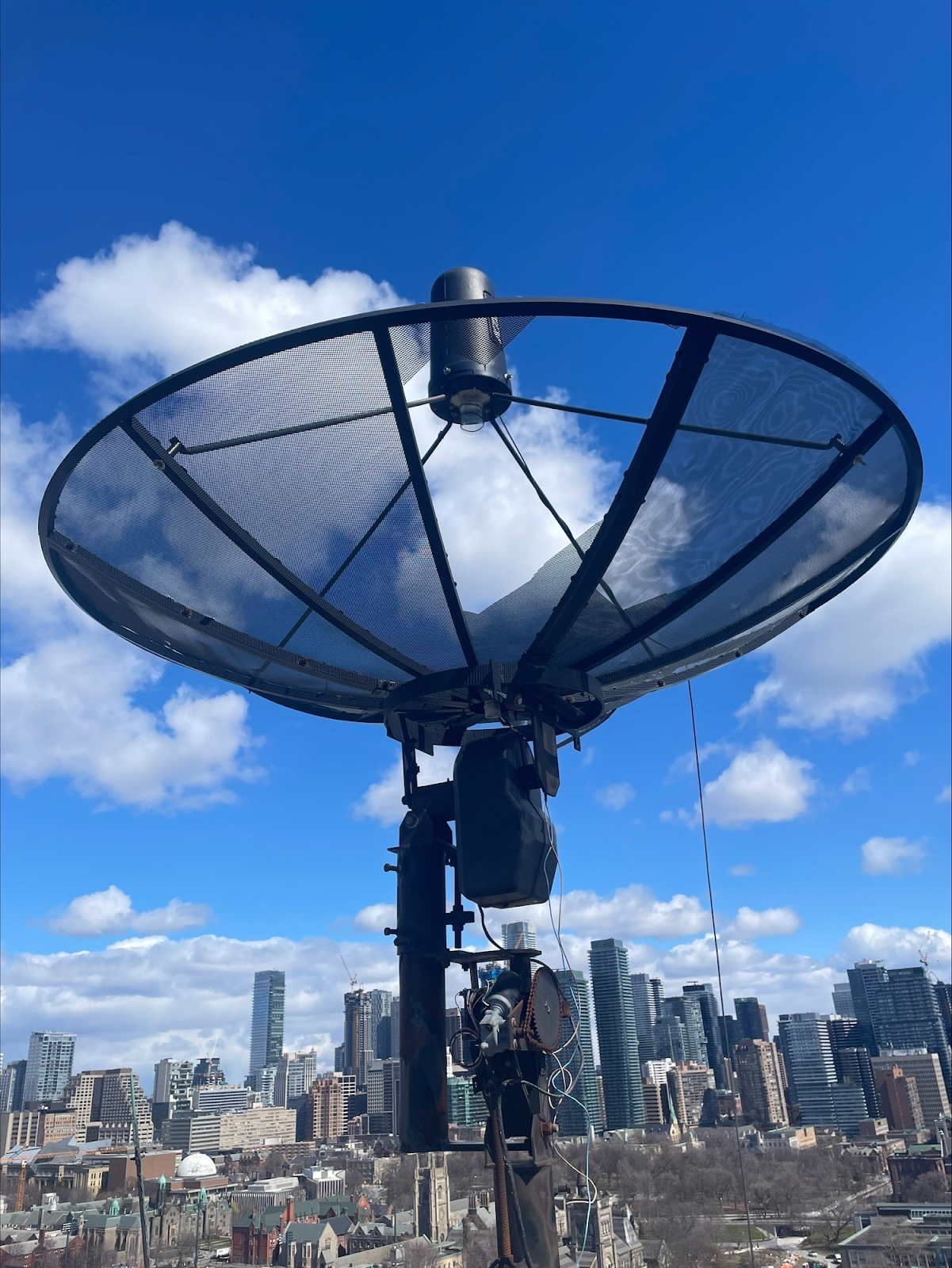

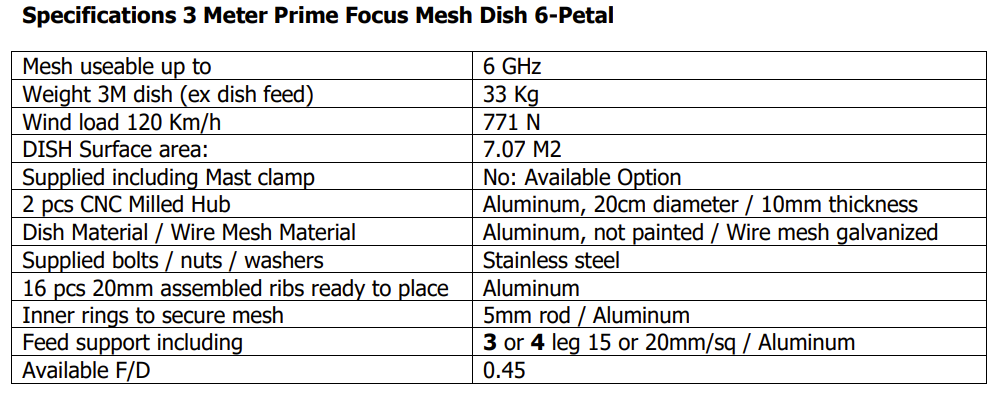

Dish (6-Petal 3M0 Dish KIT / 6mm mesh)

https://www.rfhamdesign.com/downloads/rf-hamdesign-dish-kit_3m_kit_spec_6petal.pdf

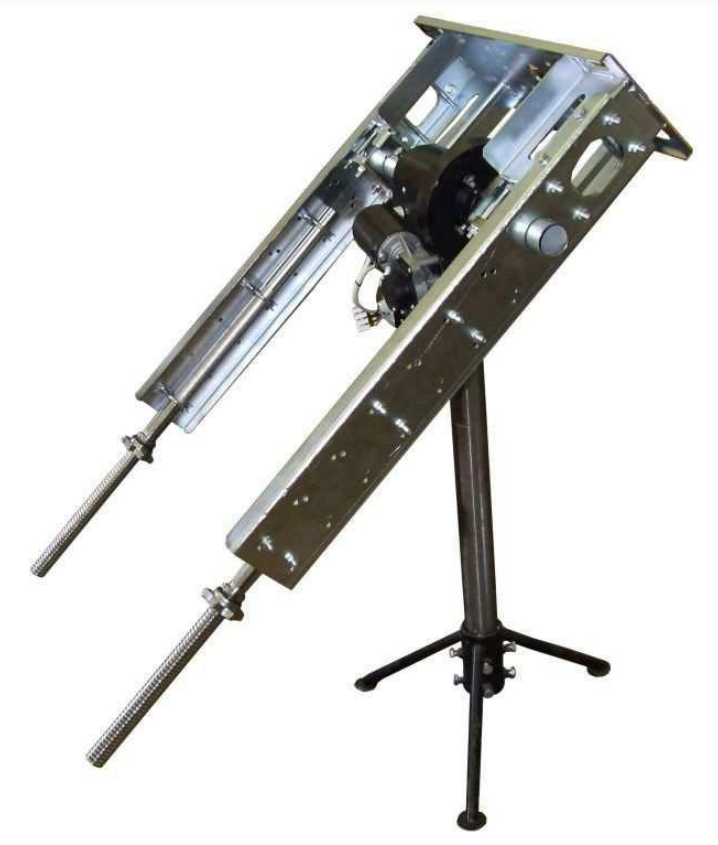

Bracket (UA-02 Dish Mounting Bracket)
